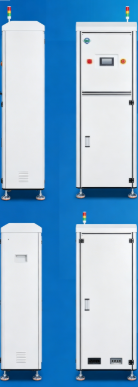

SMT PCB Conveyor with high production efficiency and large storage capacity supporting complex PCB handling requirements

1. This machine comes with a dedicated HMI human-machine touch control panel. Operators can switch working functions effortlessly with a clear, user-friendly visual interface.
2. Built around a PLC intelligent control system, the unit is fitted with multi-layer electrical circuit safety protections to deliver consistent, risk-free running performance.
3. It is pre-configured with 30 independent storage slots for temporary PCB holding; custom slot quantities are acceptable based on client requirements.
4. Multiple working modes are integrated into one device, including first-in first-out (FIFO), first-in last-out (FILO), and direct pass-through conveying mode.
5. A servo drive positioning module is adopted, delivering ultra-precise positioning, rapid vertical lifting, expanded storage volume and boosted overall line productivity.
6. It supports standard SMEMA signal communication protocols for smooth connection with other SMT production machinery.

• Application Scenarios: Acts as a PCB buffer station between separate SMT production machines; automatically sorts qualified and defective PCBs post AOI testing and stores them in designated separate bins.
• PCB Storage Quantity: Standard capacity of 30 circuit boards, custom capacities available on request.
• Maximum Single PCB Weight Load: 1.5 kilograms per board
• Single Operating Cycle Duration: Roughly 12 seconds
• Storage Layer Spacing Options: 20mm or 40mm; customized spacing sizes are supported
• Power Input & Rated Power Draw: Single-phase AC 220V, maximum power consumption of 850VA
• Minimum Supported PCB Thickness: 0.6mm

Shenzhen Jingji Technology Co., Ltd. specializes in the design, manufacturing and sales of industrial material storage equipment, flexible automated production machinery, and other automated testing instruments. We also supply a full range of anti-static auxiliary accessories.

We tailor integrated factory material handling solutions for manufacturers to cut unnecessary resource waste throughout their procurement and supply chain workflows. Our core mission is to provide full-cycle one-stop services for all clients, fully match their unique production demands, elevate product quality standards, and raise customer satisfaction within the automated storage and logistics industry.

Please reach out to our team anytime if you have technical inquiries or customized equipment demands, we are ready to offer full support for you.

• Intuitive HMI touchscreen control for easy function adjustment
• PLC control plus multi-circuit safety protection for stable, secure operation
• 30 standard temporary storage slots, customizable storage capacity
• All-in-one modes: FIFO, FILO, straight through transport
• Servo positioning ensures high accuracy, fast lifting speed, large storage capacity & higher throughput
• Compliant with SMEMA standard communication for easy line integration

• Function: Buffer PCBs between SMT equipment; Classify OK/NG boards from AOI into separate storage bins
• Standard Storage: 30 pcs (customizable)
• Max load per PCB: 1.5kg
• Cycle time: ~12s
• Storage pitch: 20/40mm (customizable)
• Power: Single-phase AC220V, max 850VA
• Min PCB thickness: 0.6mm

CHT350: PCB 80*50~510*350mm, Weight 245kg, Size 600*950*1860mm

CHT-460: PCB 80*50~510*460mm, Weight 265kg, Size 600*1060*1860mm

Shenzhen Jingji Technology Co., Ltd. is a professional manufacturer focusing on automated storage devices, flexible production equipment and testing instruments, alongside anti-static peripherals sales.

We design customized logistics solutions to help factories reduce supply chain resource loss. We strive to deliver complete services, satisfy personalized production requirements, upgrade product quality and maximize customer satisfaction in automation storage & logistics sector.

Feel free to contact us at any time for any questions or customized needs.
